Moxtek has developed cost effective and reliable methods to obtain uniform wafer scale metallic and dielectric nanohole, nanopost, nanodome, and photonic crystal arrays. These can serve as optical biochip  1 deposit casino uk.com  platforms for applications such as enhanced fluorescence, surface enhanced Raman spectroscopy, and label free sensing. A wide range of structural parameters can be tuned, allowing for customization to your unique needs. Brochure includes table of capabilities for biosensor fabrication.

Click here for brochure

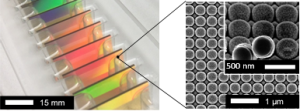

Moxtek has achieved low cost, wafer-scale manufacturing of photonic crystal structures for label-free sensing and microarray based surface enhanced fluorescence applications. Here TiO₂ photonic crystal guided-mode resonance structures are presented, and showed a 7.7 fold average fluorescence enhancement factor when compared to a glass reference slide for assays of Human IgG, IgM, IgA, and streptavidin-biotin.  The structure depicted below also produced a 2.5nm spectral shift upon binding of a self-assembled monolayer, thereby demonstrating the capability for detection of sub-monolayer thicknesses of adsorbates.

Click Here for full white paper

Moxtek has developed cost effective and reliable methods to obtain uniform wafer scale metallic nanohole array patterned biochips. Here their use as fluorescence enhancing substrates for Cy3 based protein microarrays is demonstrated. The structures, utilizing highly focused and enhanced optical fields, greatly boost the fluorescence SNR, allowing for the detection of antigen concentrations 3+ orders of magnitude lower than current commercial standards.

  Read more
